60" Manhole Replacement

Project Location
Atascocita Rd, Atascocita, TX
Construction cost
$237,437
Construction Start/End
02/02/16 - 03/12/16

Details

Dimensions:

60” RCP Manhole with a 8” Force Main, 17 VF – walls were fully deteriorated from H2S corrosion

Depth of structure:
17 VF
Health and safety:
Used conventional confined space entry program
Has any re-inspection been performed? What was the condition of the structure?
Yes. Manhole was in excellent condition
References

Alene Efaw
Brown & Gay Engineers, Inc.
281-558-8700

Methodology

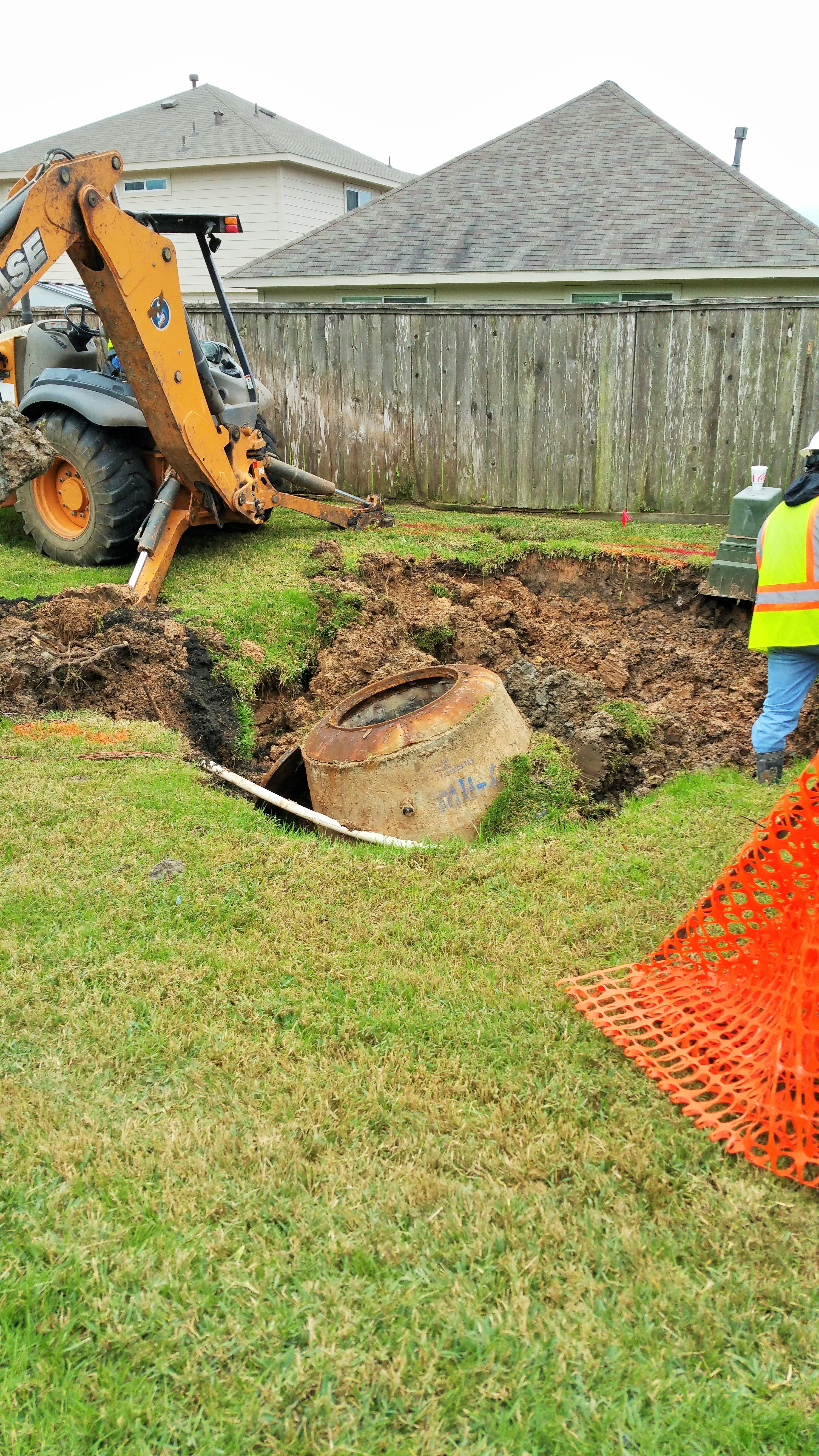

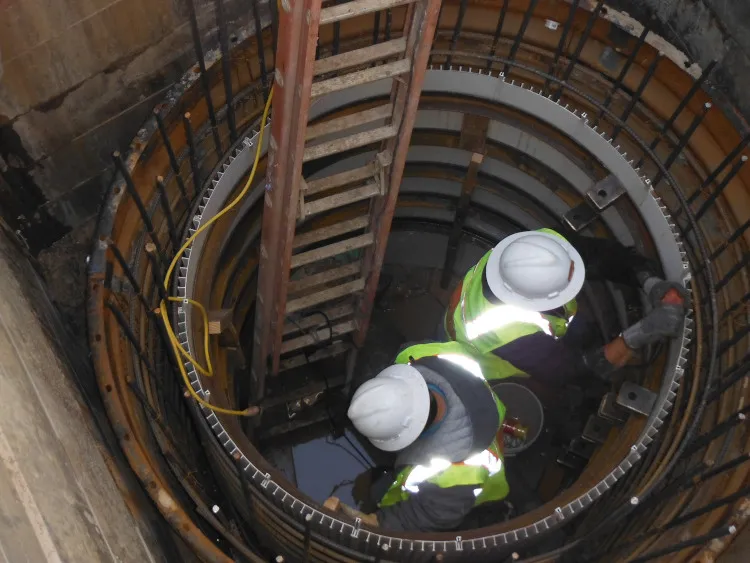

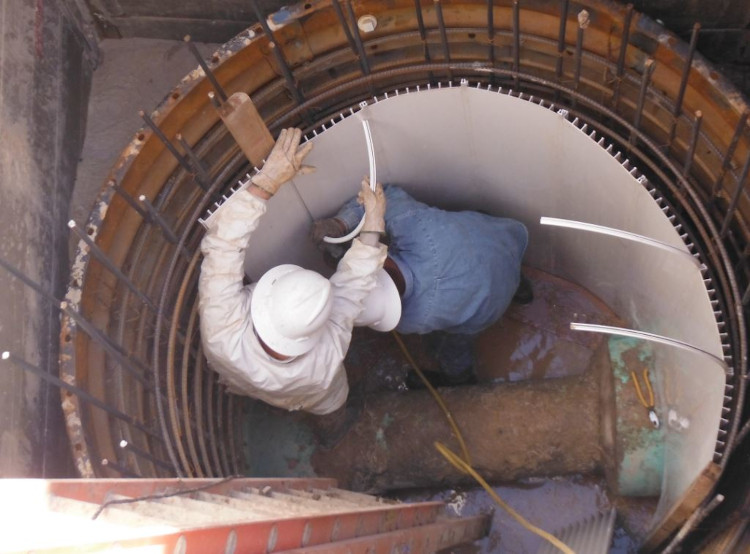

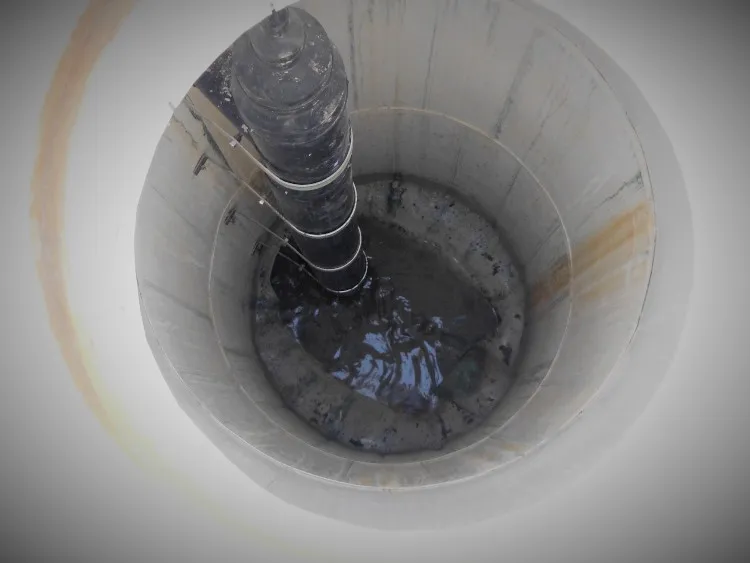

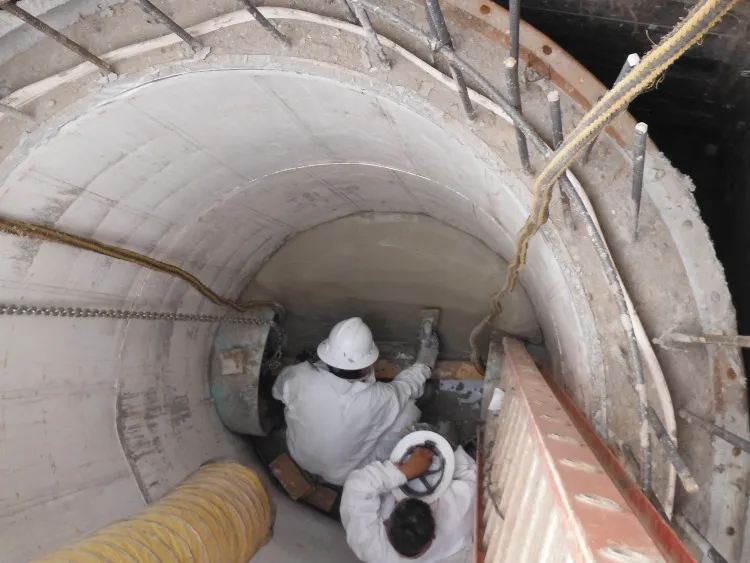

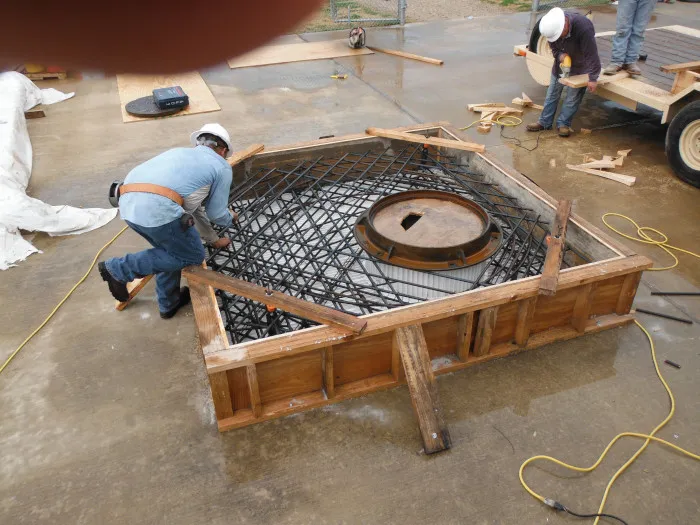

Prior to installation of the Danby liner, the contractor installed 17 VF of 6’ ID liner plate, then began reconstructing the manhole with a double mat of rebar then installed Danby PLIII flat panels 8’ vertical sections. The 8” force main was tied in using a custom fabricated 12” HDPE force main drop. An 8’x8’x18” thick concrete manhole lid was also constructed with the underside having the corrosion resistant Danby PVC liner. This manhole was reconstructed by Boyer, Inc. of Houston, Tx

Method of flow bypass or diversion, if used:
Internal by-pass inserting an 18” line in the upstream pipe connecting to the downstream 21” line

Hurdles

Problems encountered during construction:
Prior to construction, nearby communication and utilities were in jeopardy of sinking with the surrounding ground sloughing off.
Problems encountered after construction:
None
