Chelford City Diversion Package 1

Project Location

Houston, Texas

Construction cost

Unknown

Construction Start/End

Year Completed - 2021

Details

When was it constructed and how long has it been in service:

Cast-in-place structures built in 2021

Dimensions:

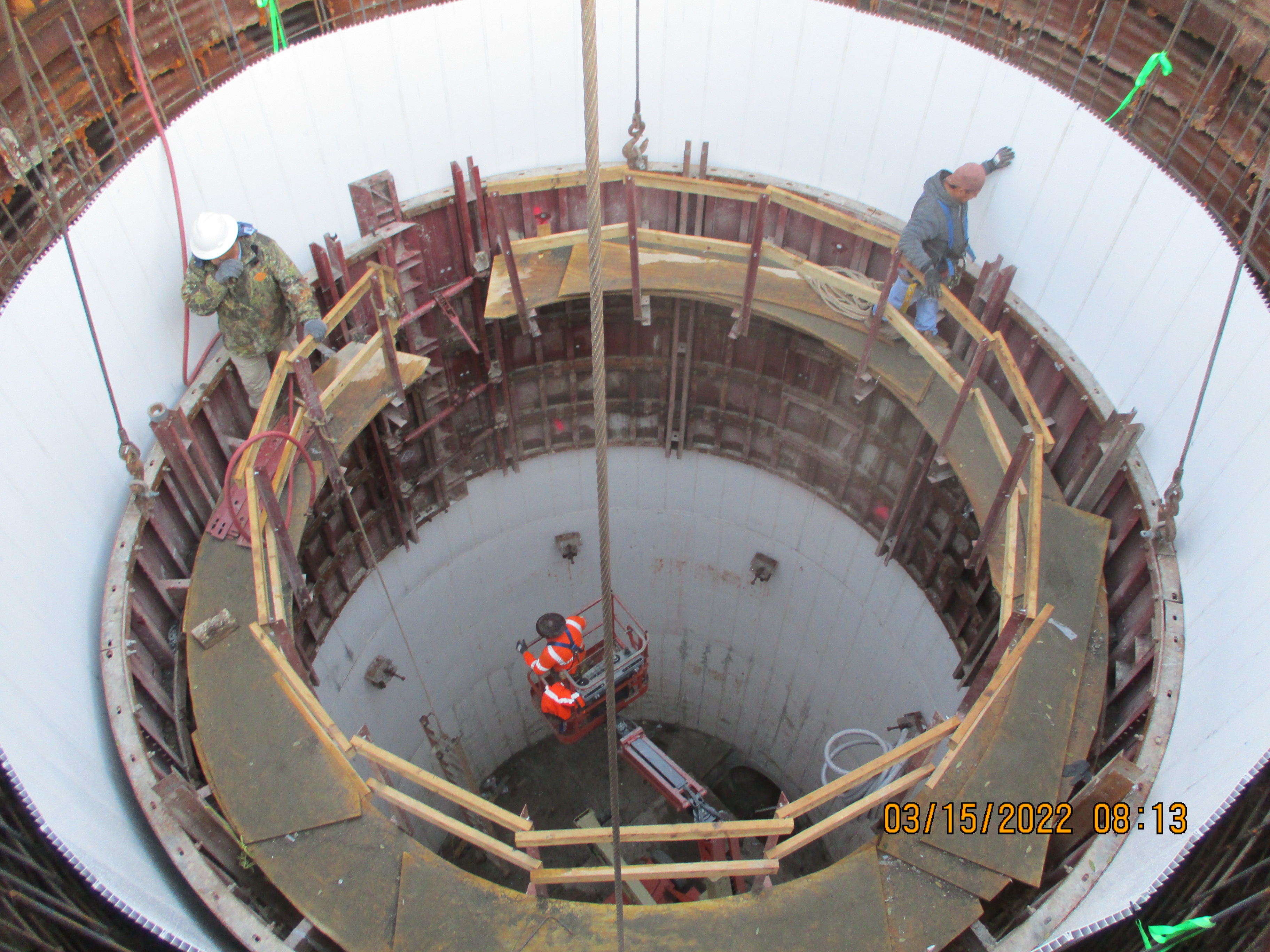

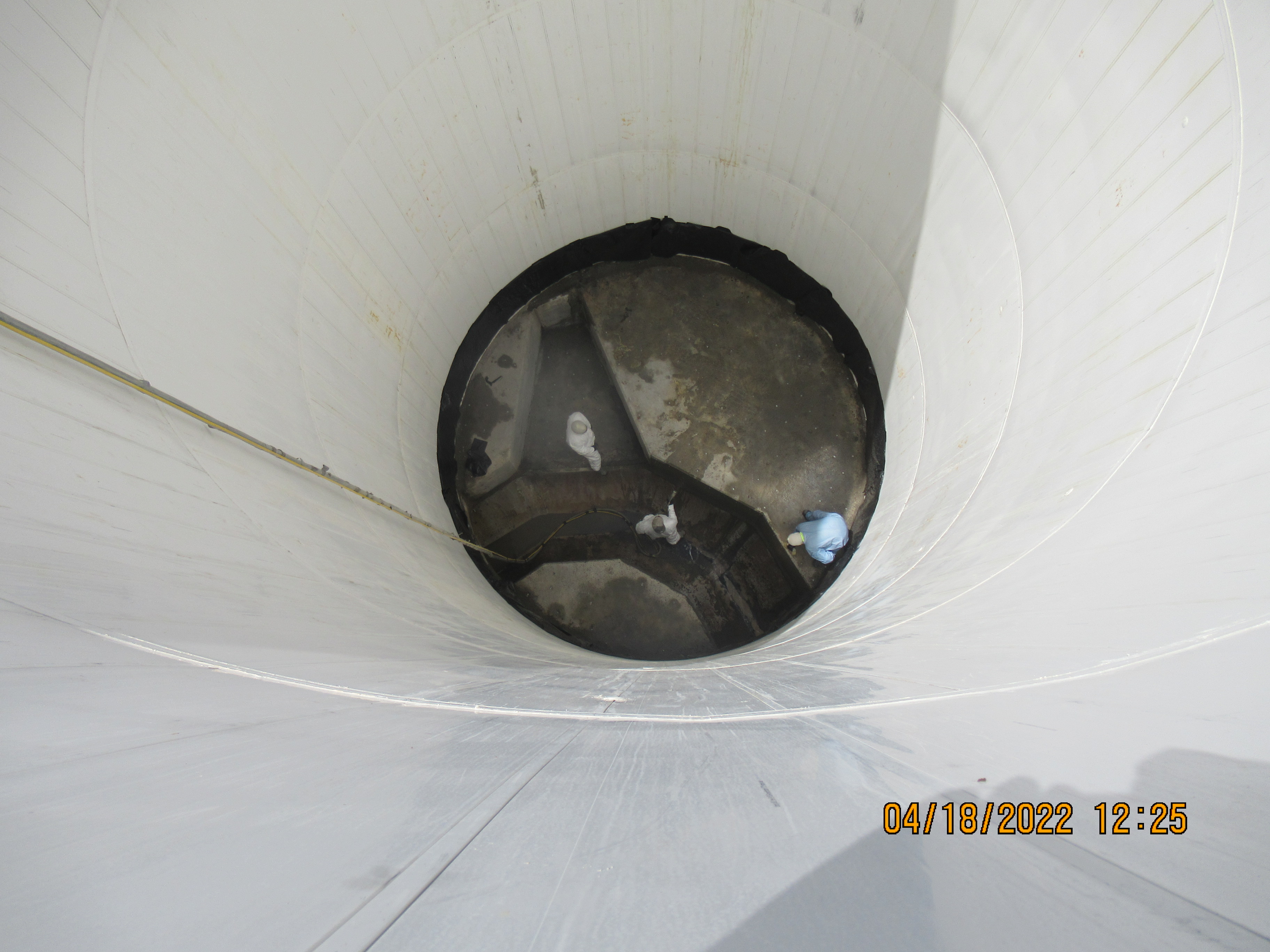

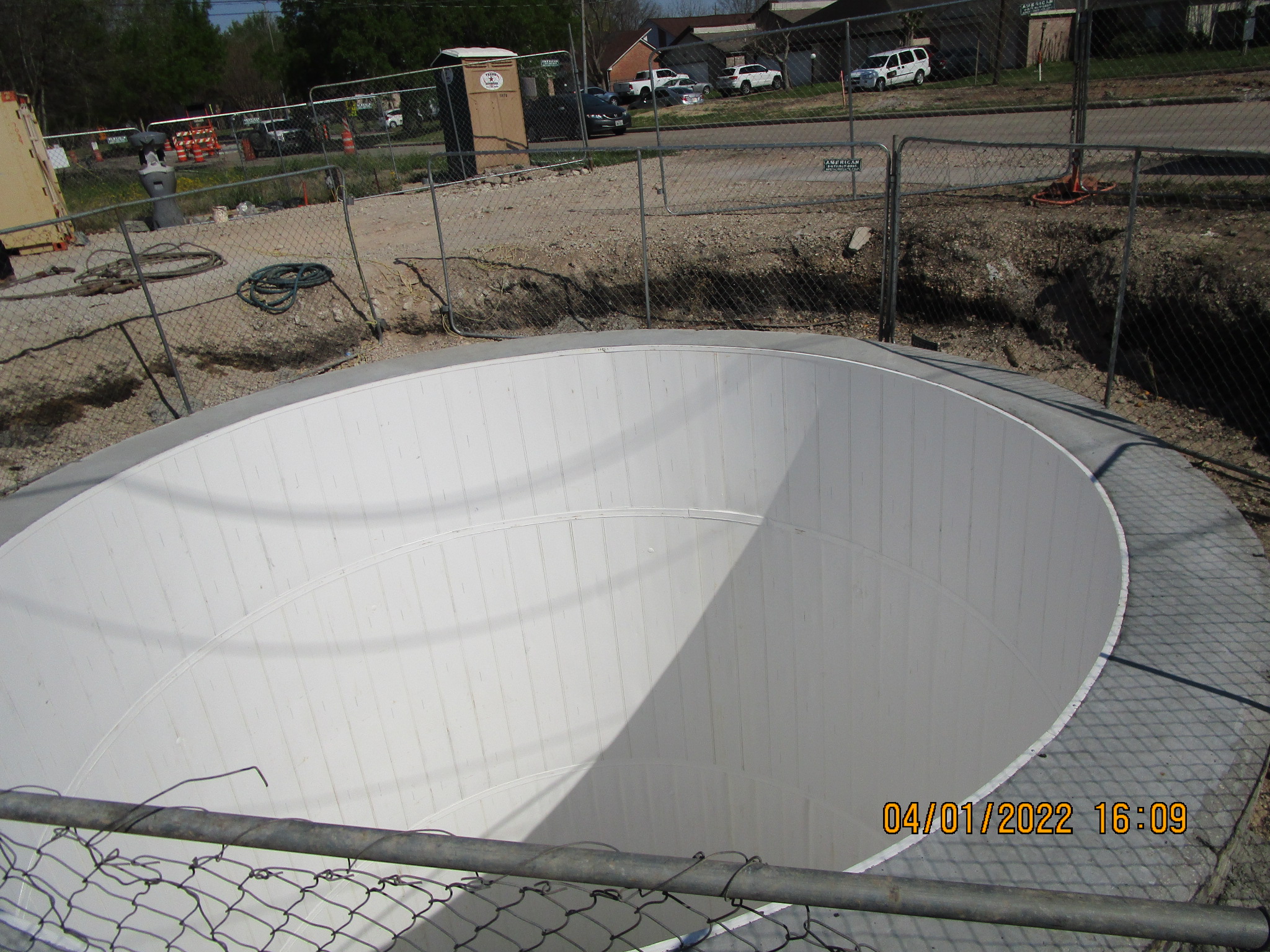

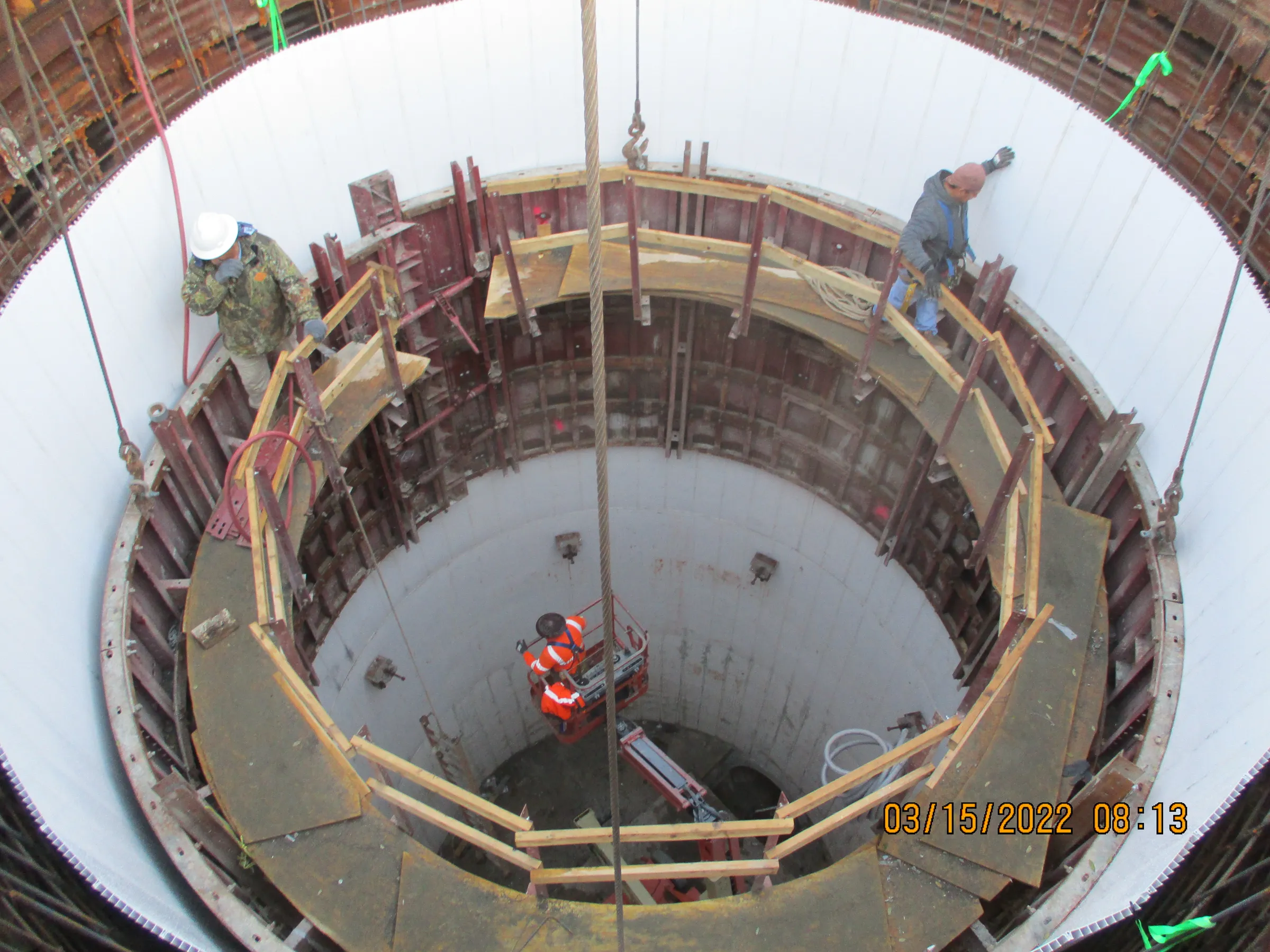

Chamber 1 - 20’ diameter

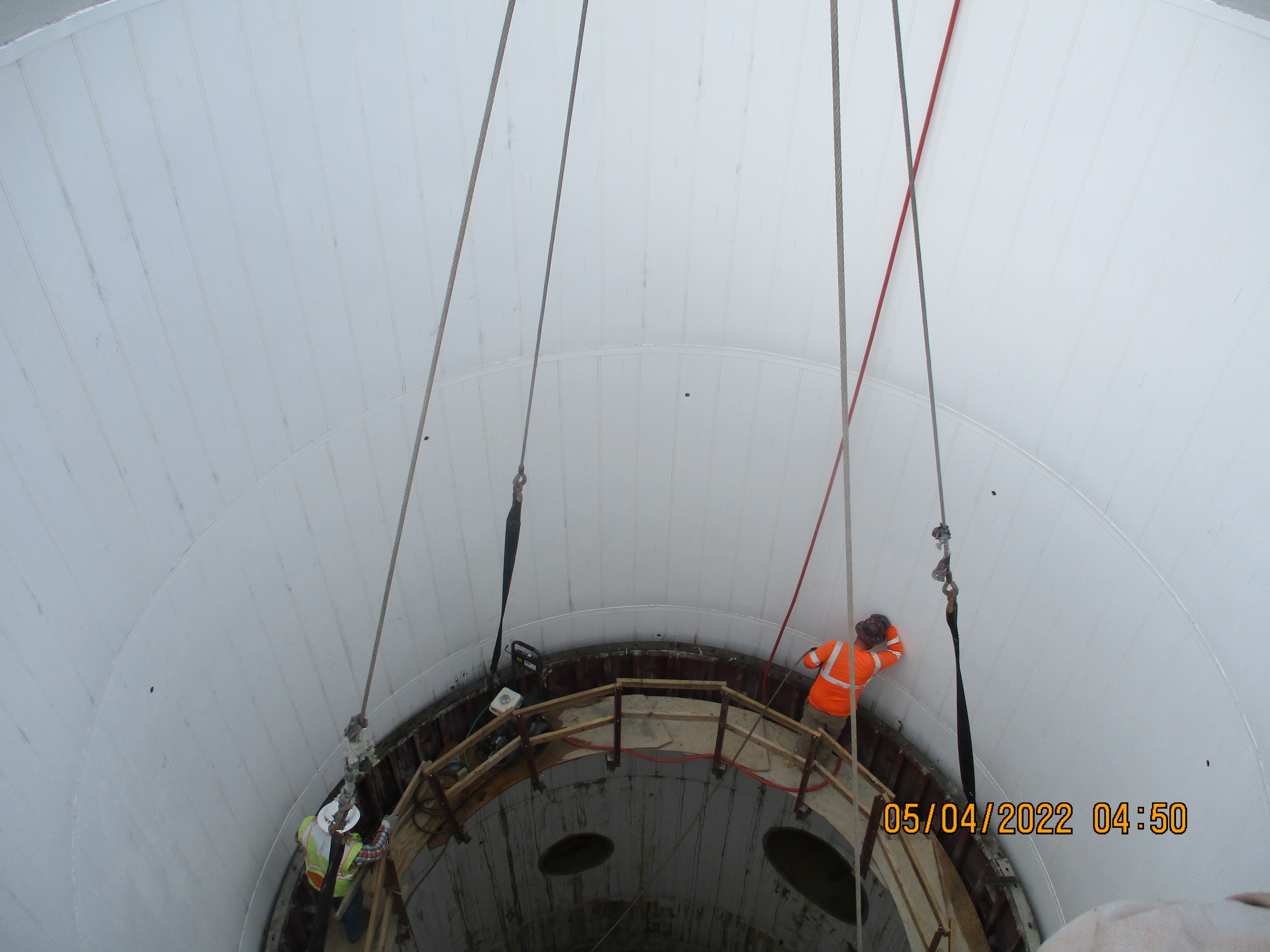

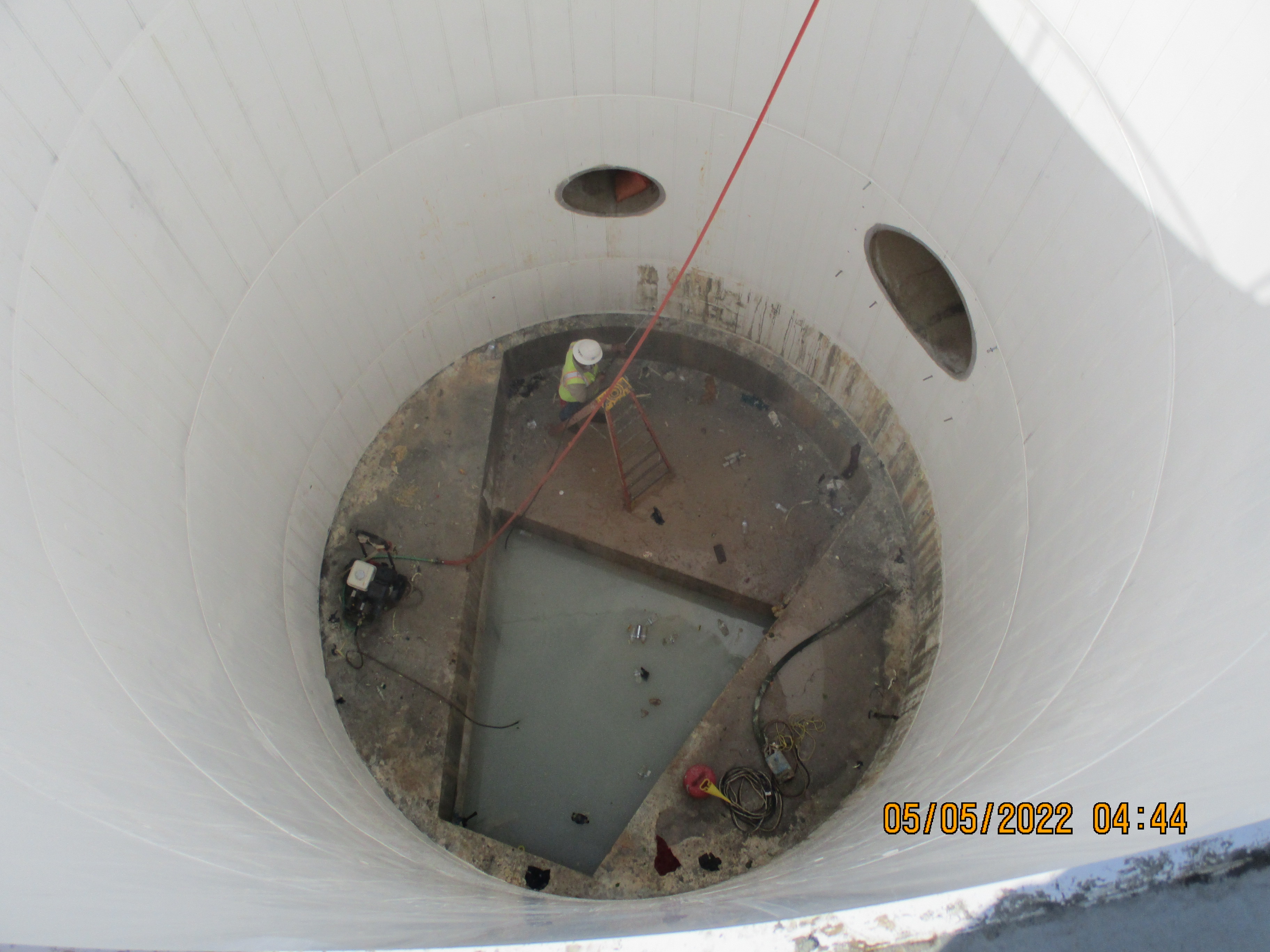

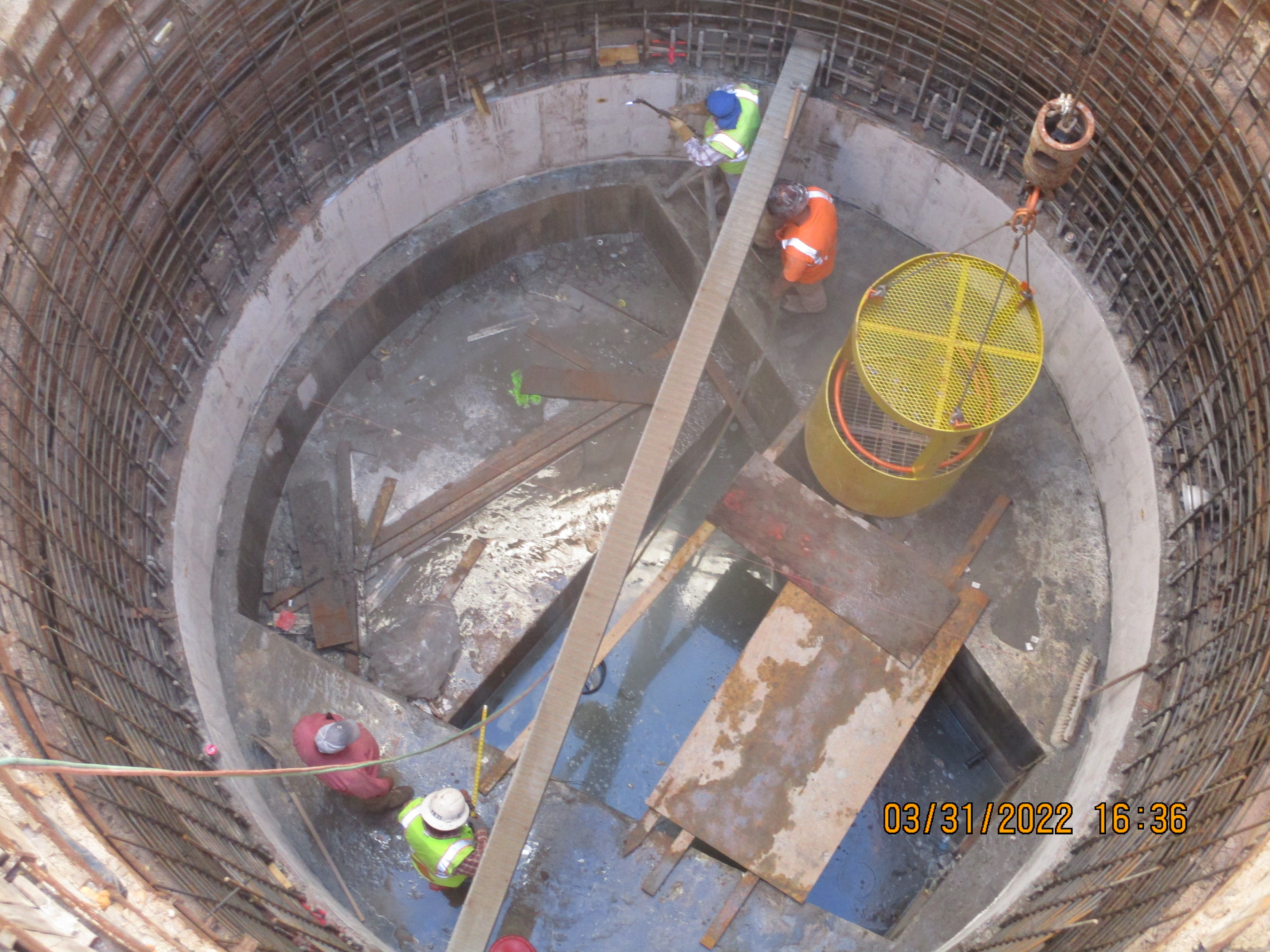

Chamber 2 – 24’ diameter

Depth of structure:

Chamber 1) 47' deep; Chamber 2) 43' deep

Methodology

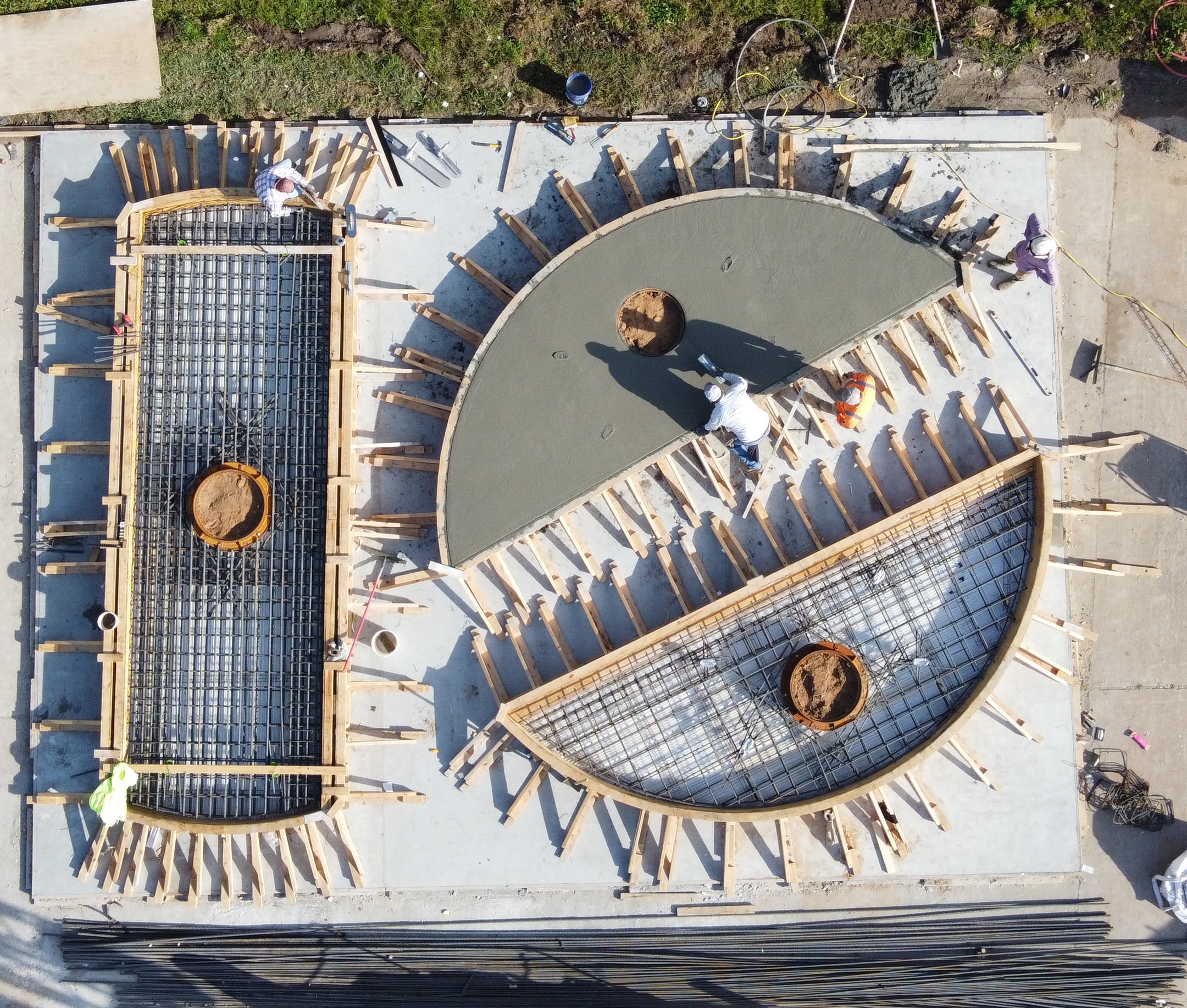

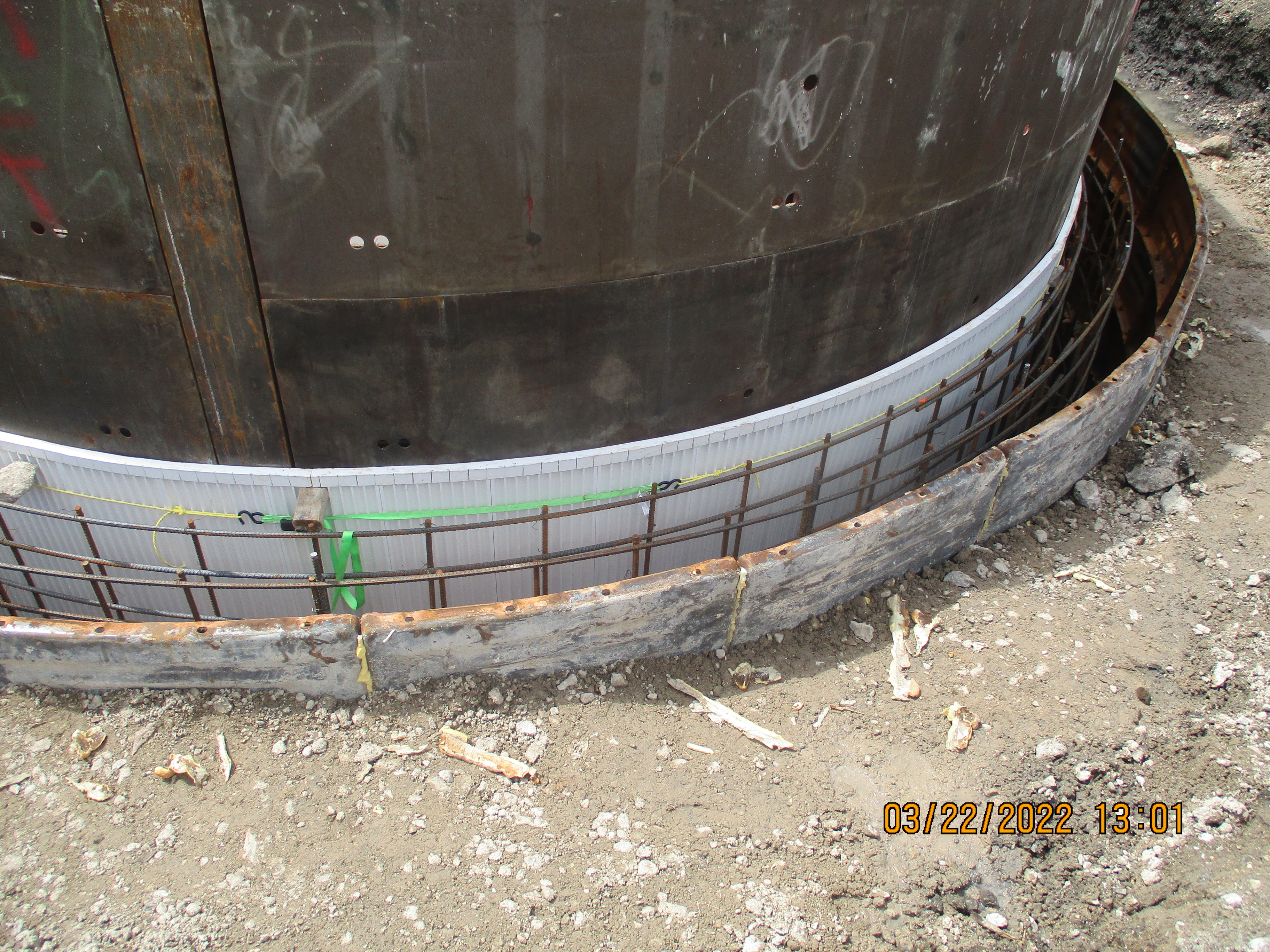

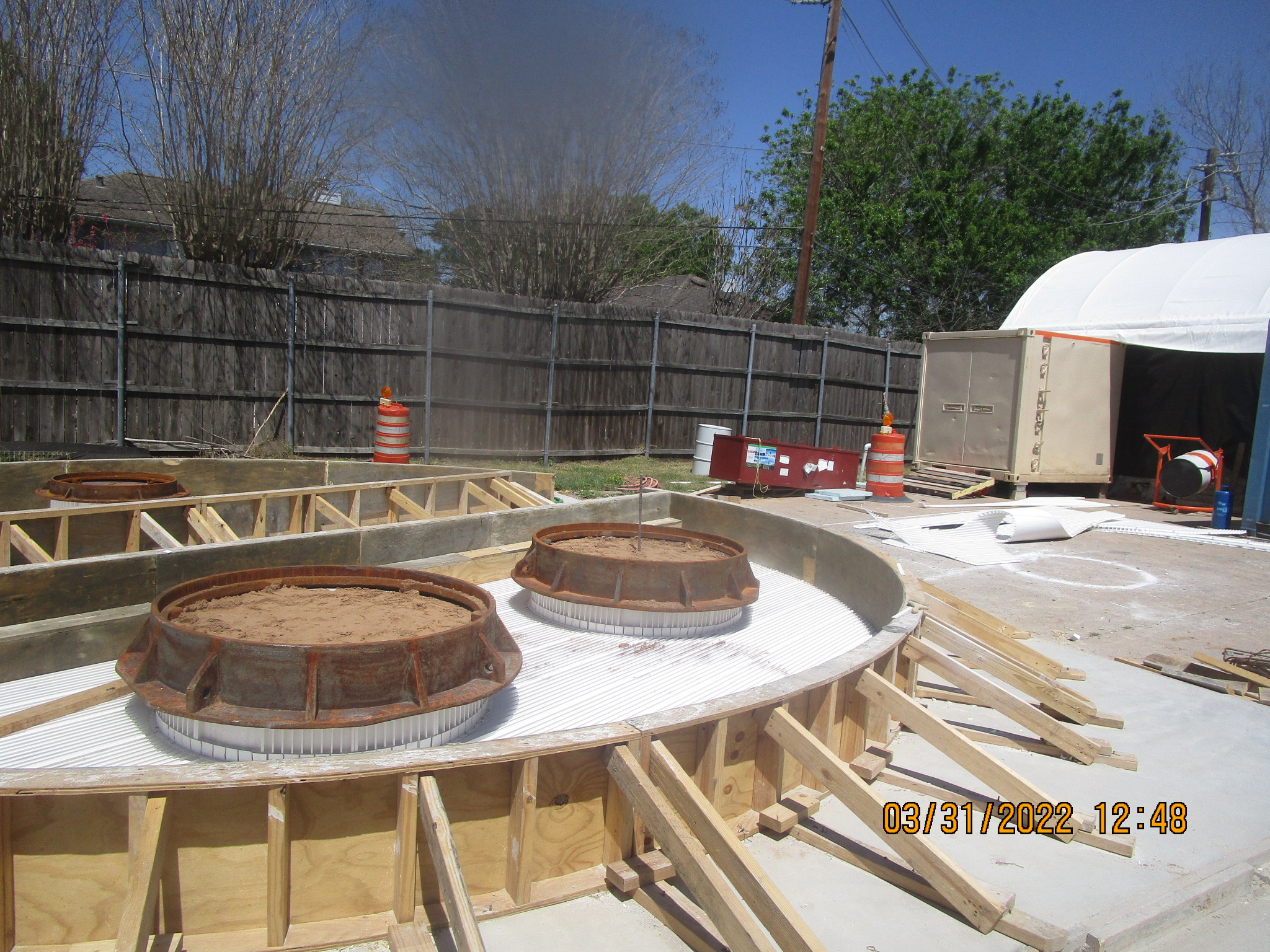

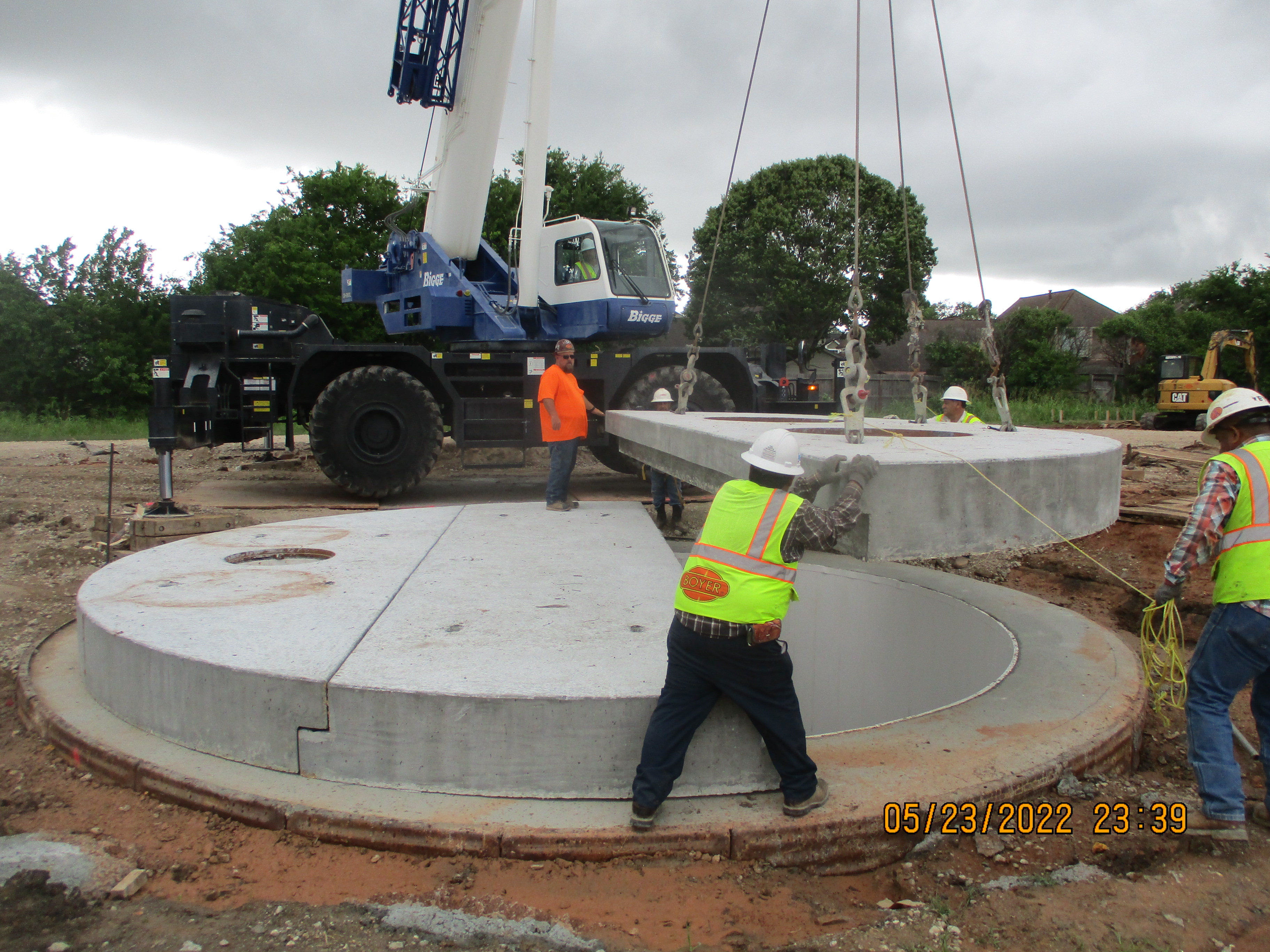

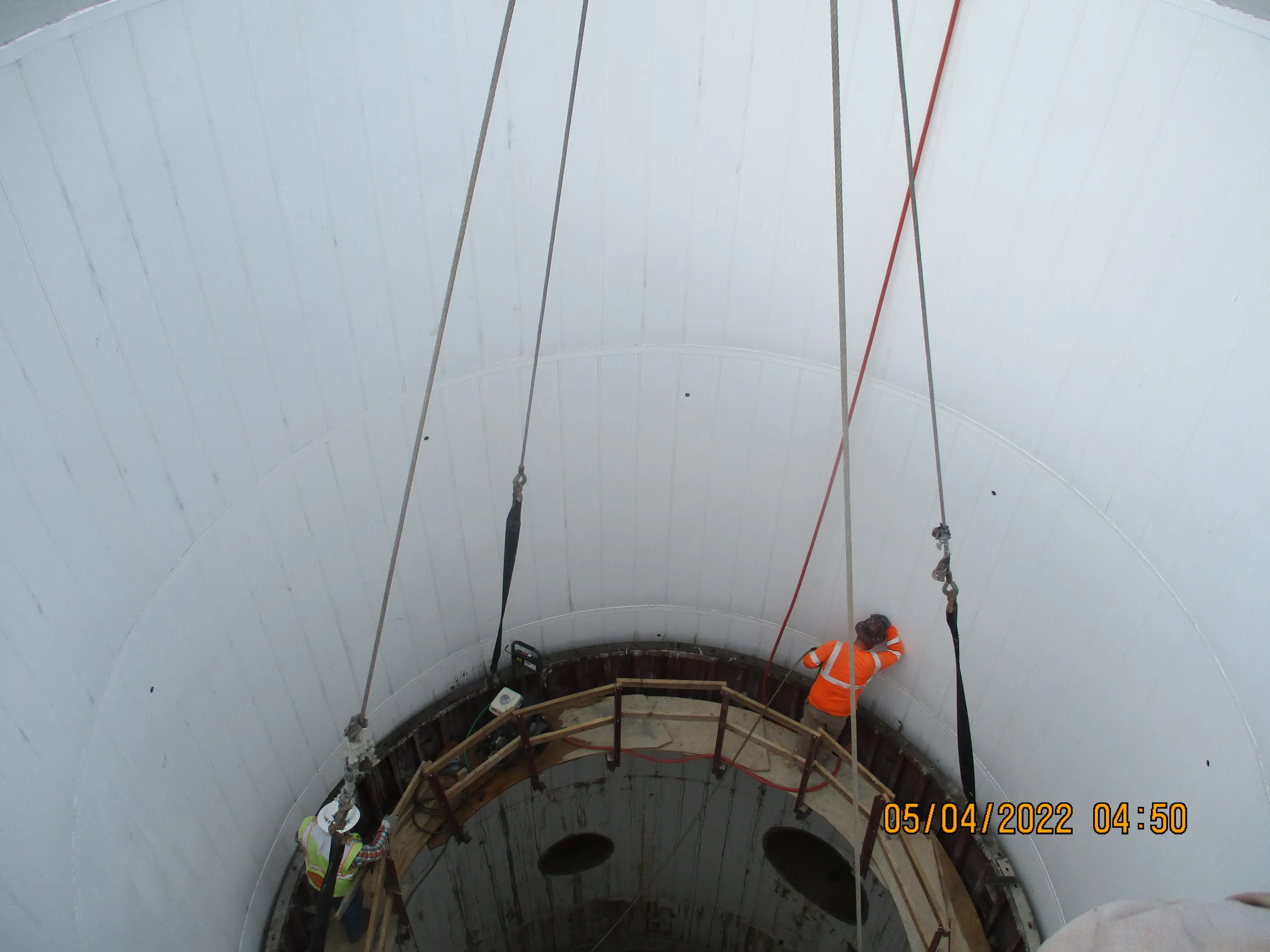

Danby PL3E, 1” Profile” flat panels were used in the cast-in-place manholes and the 3 section lids.

Hurdles

Problems encountered after construction:

A rare winter storm produced Freezing weather for several days in the State of Texas caused delays in production as well as other project material being delivered.
